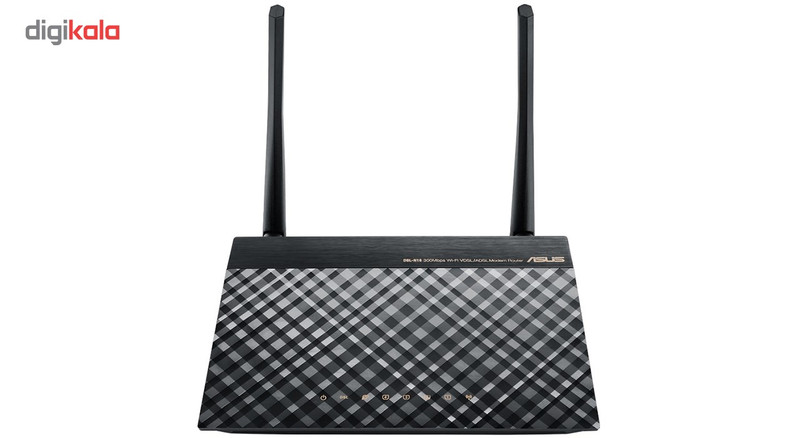

مودم روتر بی سیم VDSL/ADSL ایسوس مدل DSL-N16

225 گرم

35 × 190 × 235 میلی‌متر

RJ-45 LAN

چهار عدد

یک عدد

WPS Button, Reset Button, Power Button, Wireless on/off Button

دو عدد

کیفیت خدمات (QoS)

Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi

IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e

ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
ITU-T G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant

ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M

ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
استانداردهای VDSL
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T G.993.2

-

IEEE 802.11 b/g/n

2.4 گیگاهرتز

64bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK

b mode : 20.5 dBm, g mode : 17 dBm, n mode : 17 dBm

Traffic monitor

IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP server, PPTP client, L2TP client

Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function

CE

همه سیستم عامل ها
