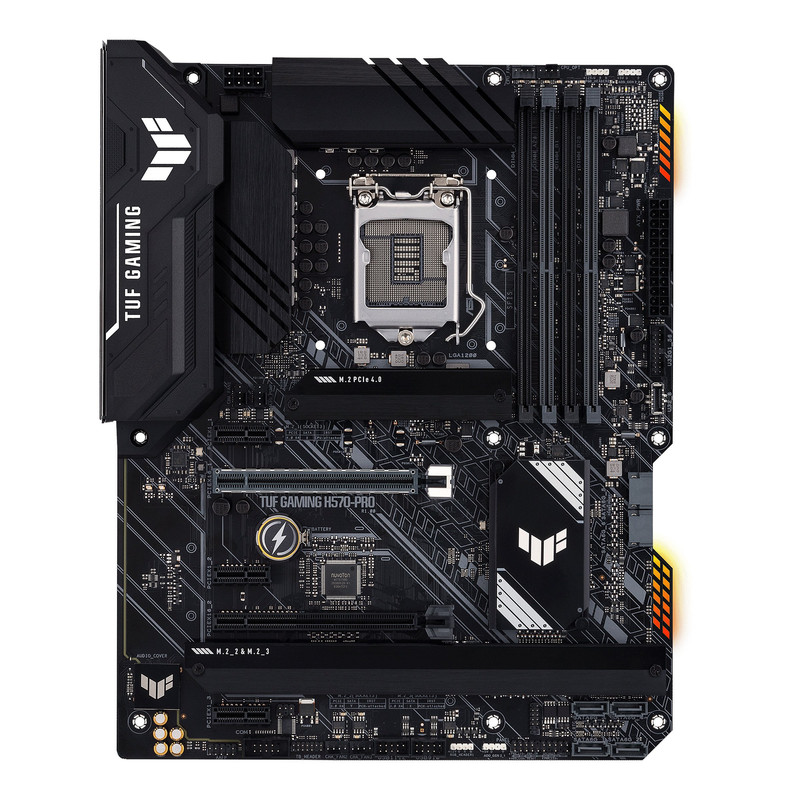

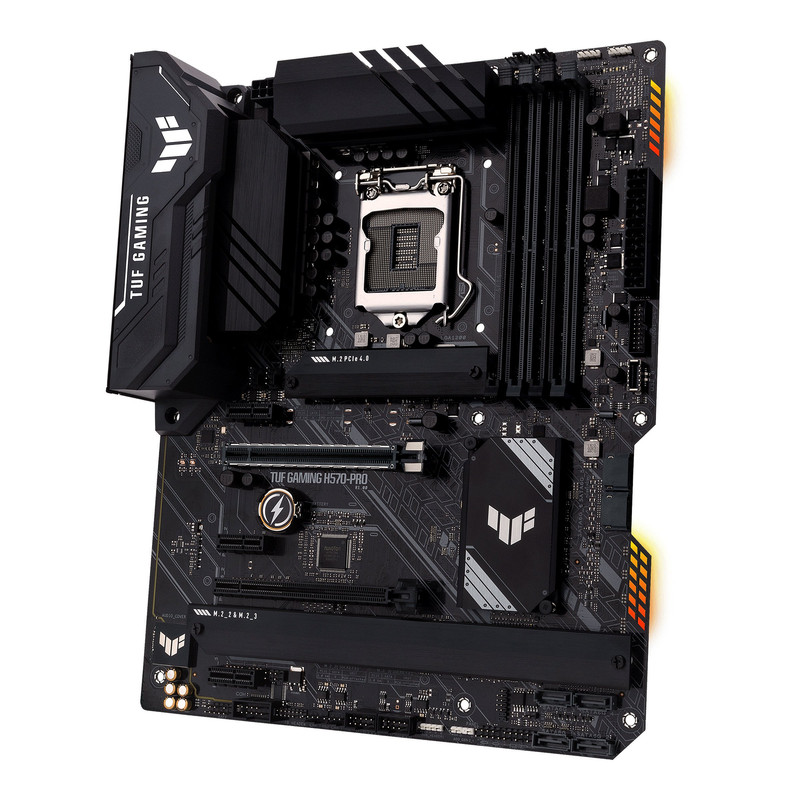

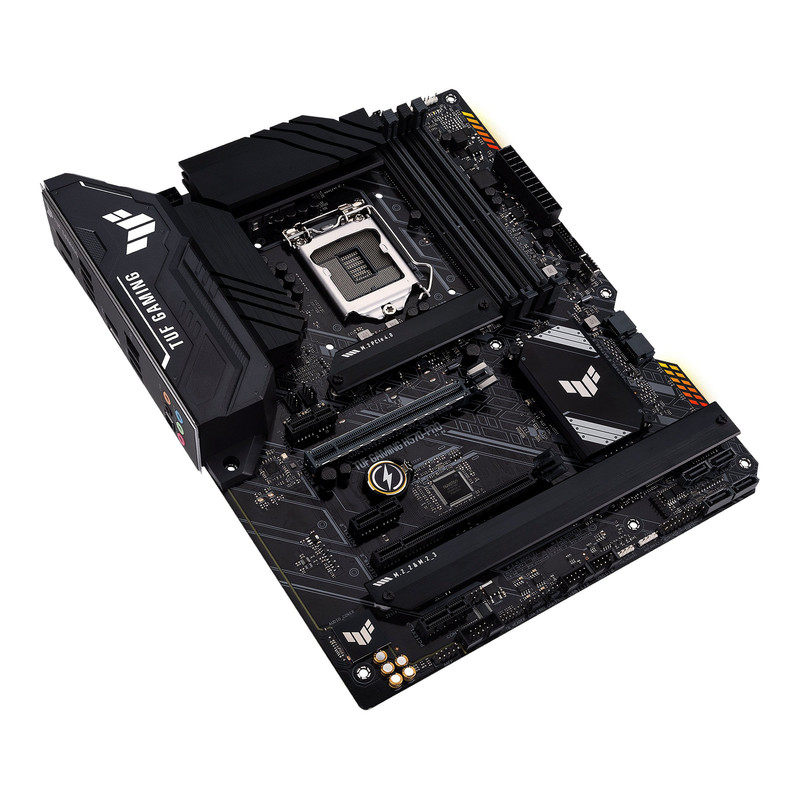

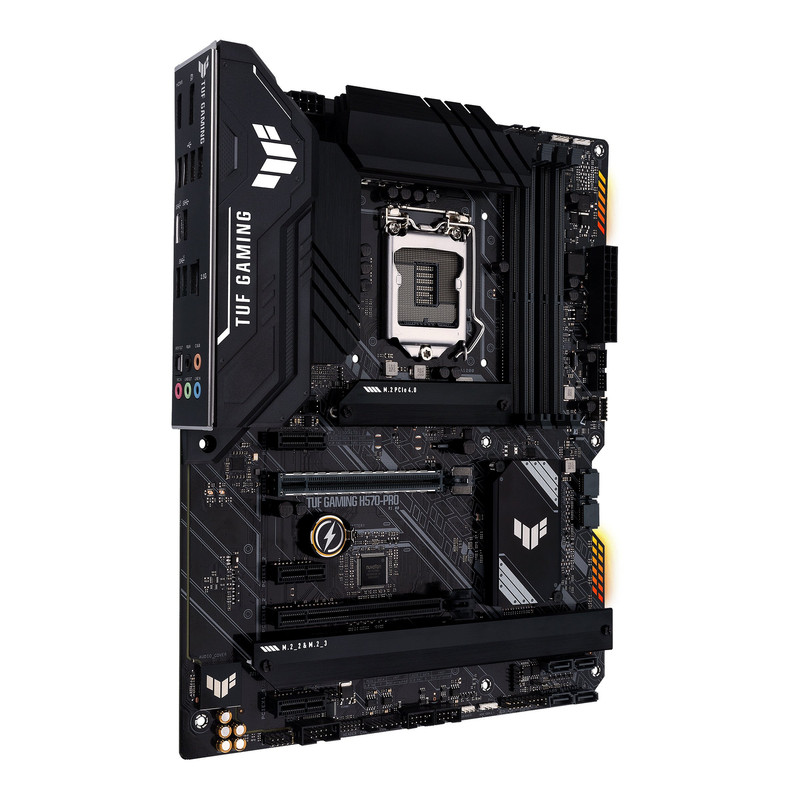

مادربرد ایسوس مدل TUF GAMING H570-PRO

یک عدد

Intel LGA 1200

11th Gen Intel Core Processors
10th Gen Intel Core Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

DDR4

چهار عدد

128 گیگابایت

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 مگاهرتز

دو کاناله

1 عدد DisplayPort 1.4
1 عدد HDMI 2.0
Graphics specifications may vary between CPU types
Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz
Only Intel 11th processors, support HDMI 2.0 with max. resolution of 4K@60Hz, others would only support HDMI 1.4 with max. resolution of 4K@30Hz

سه عدد

دو عدد

20 مسیر

1 مسیر PCIe 4.0/3.0 x16 slot
1 مسیر PCIe 3.0 x16 slot (supports x4 mode)
3 مسیر PCIe 3.0 x1 slots

سه عدد

PCI-E 3.0 x4

شش عدد

3 عدد M.2 slots
6 عدد SATA 6Gb/s
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
Only Intel 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCHattached slots
To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology
M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled

Realtek 2.5Gb

1 عدد Realtek 2.5Gb Ethernet

چهار عدد

یک عدد

دو عدد

پنل پشتی:
1 عدد USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 عدد USB 3.2 Gen 2 ports (2 x Type-A)
1 عدد USB 3.2 Gen 1 port (1 x Type-A)
4 عدد USB 2.0 ports (4 x Type-A)
اتصالات داخلی:
1 عدد USB 3.2 Gen 1 connector (suppports USB Type-C)
1 عدد USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 عدد USB 2.0 headers support additional 4 USB 2.0 ports

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
پشتیبانی از Jack-detection, Multi-streaming, Front Panel Jack-retasking
قابلیت پشتیبانی تا 24-Bit/192 kHz playback
Audio Shielding
Rear optical S/PDIF out port
Premium Japanese audio capacitors
Dedicated audio PCB layers
Audio cover

یک عدد

5 عدد

1 عدد USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 عدد USB 3.2 Gen 2 ports (2 x Type-A)
1 عدد USB 3.2 Gen 1 port (1 x Type-A)
4 عدد USB 2.0 ports (4 x Type-A)
1 عدد DisplayPort
1 عدد HDMI port
1 عدد Realtek 2.5Gb Ethernet port
5 عدد Audio jacks
1 عدد Optical S/PDIF out port

دو عدد

یک عدد

صفر

1

10 فاز

6 عدد

کانکتور برق اصلی 24 پبن ATX

1 عدد USB 3.2 Gen 1 connector (suppports USB Type-C)
1 عدد USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 عدد USB 2.0 headers support additional 4 USB 2.0 ports
1 عدد Thunderbolt 4 header
1 عدد 4pin CPU Fan header
1 عدد 4pin CPU OPT Fan header
1 عدد 4pin AIO Pump header
3 عدد 4pin Chassis Fan headers
2 عدد AURA Addressable Gen 2 headers
2 عدد AURA RGB headers
1 عدد Clear CMOS header
1 عدد COM Port header
1 عدد Front Panel Audio header (AAFP)
1 عدد 20/3pin System Panel header with Chassis intrude functionpasting
1 عدد Thunderbolt header

192 (64+128) مگابایت Flash ROM
UEFI AMI BIOS

WOL by PME, PXE

ATX

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
