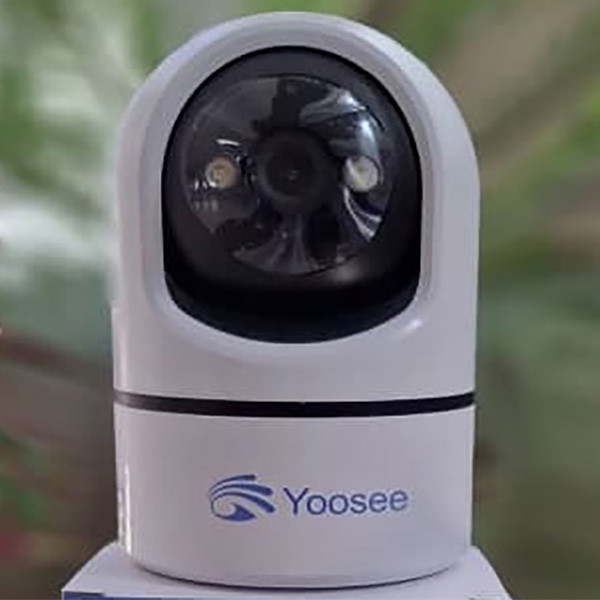

دوربین مداربسته تحت شبکه یوسی مدل D301

تحت شبکه

8x8x12 میلی‌متر

بی‌سیم جمع‌وجور

بی‌سیم (Wi-Fi)

CCD

2.8MM

F2.0 میلی‌متر

15FPS ثانیه

2MP

15FPS

قابلیت چرخش Tilt

10X برابر

10X برابر

360

0.01 Lux

با استفاده از نرم افزار و یا بصورت اتوماتیک قابلیت دید در شب رنگی را فعال یا غیرفعال کنید

Built-in microphone and speaker, support two-way real-time audio transmission. ADPCM audio compression standard, self-adaptive stream code

128GB

PAL

APP YOOSEE

H.264/H.265/15FPS

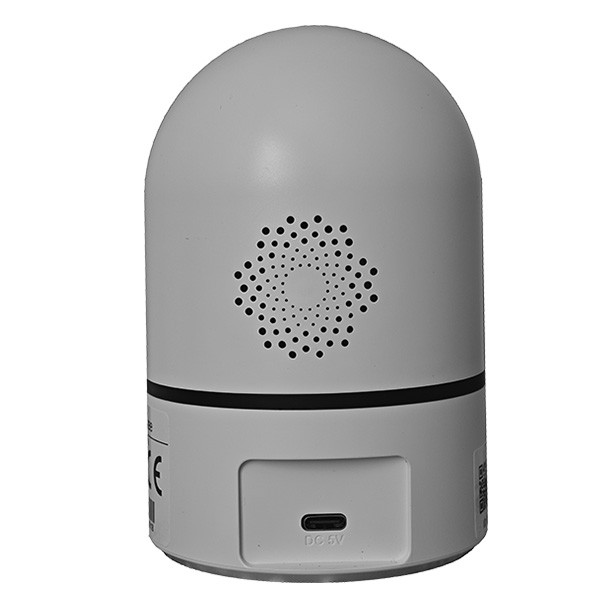

USB Type C

شارژر و کابل شارژ
دفترچه راهنما
پیچ و رولپلاک و پایه نصب

D301 Model:
Yoosee APP:
System structure: Embedded Linux system, ARM chip structure,iOS 10+,Android 5.0+
Chip: TS100+1346
Pixel: 2MP
Sensor Resolution: 1920*1080/2048*1534/2560*1920
Lens 2.8MM
Pan-tilt: Horizontal：355° Vertical：90°
Preset point quantity: 6pcs
Video compression standard: H.264/H.265/15FPS
Video format: PAL
Minimum illumination: 0.01Lux@（F2.0，VGC ON),O.Luxwith IR
Electronic shutter: Auto
Backlight compensation： Support
Noise reduction: 2D、3D
Infrared LED: 2pcs Two dual LED
Network connection: Support WIFI, Support Bluetooth, AP hotspot (without RJ45 Network port)
Network: Wi-Fi （Support IEEE802.11b/g/ N wireless protocol）
Night Version: Dual Light switch automatic, 5-10 Meters（varies from environment）
Audio: Built-in microphone and speaker, support two-way real-time audio transmission. ADPCM audio compression standard, self-adaptive stream code
Network protocol: "TCP/IP、UDP、HTTP
DDNS、DHCP、FTP、NTP"
Alarm: ①Motion detection, picture push ②Human intrusion Detection (optional) ③ Support connect with 433 Alarm
ONVIF: Support ONVIF
Storage: TF Card（Max 128G）；Cloud storage (optional)
Power input: 5V/1.6A (EU and US Plug optional)
Work environment: Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH
